MJAT37、MJAT47、MJAT57、MJAT67、MJAT77、MJAT87、MJAT97、MJAT107、MJAT127、MJAT157、系列弧齿锥齿轮硬齿面减速电机安装结构尺寸图表 |
 |
| |
详细介绍： |
发布时间：2006/6/6 8:57:29 |
|
| |

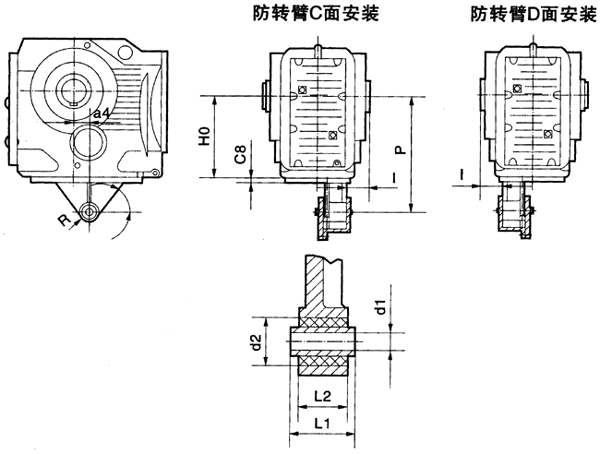

MJAT37-157安装结构尺寸图表
|
型号 |
L2 |
β |
C8 |
R |
P |
l |
H0 |
d1 |
L10 -0.3 |
a4 |
d2 |
|
MJAT37 |
31 |
60° |
10 |
22.5 |
140 |
20 |
100 |
10.4±0.1 |
36 |
23.5 |
26+0.25 +0.1 |
|
MJAT47 |
31 |
55° |
12 |
22.5 |
160 |
20 |
112 |
10.4±0.1 |
36 |
30 |
26+0.25 +0.1 |
|
MJAT57 |
54 |
55° |
13 |
29 |
192 |
18 |
132 |
16.4±0.08 |
60 |
40 |
40+0.25 +0.1 |
|
MJAT67 |
54 |
55° |
13 |
29 |
200 |
25 |
140 |
16.4±0.08 |
60 |
45 |
40+0.25 +0.1 |
|
MJAT77 |
54 |
60° |
14 |
29 |
250 |
25 |
180 |
16.4±0.08 |
60 |
52.5 |
40+0.25 +0.1 |
|
MJAT87 |
72 |
60° |
16 |
41 |
300 |
30 |
212 |
25±0.08 |
80 |
60 |
60+0.25 +0.1 |
|
MJAT97 |
92 |
50° |
17 |
41 |
350 |
40 |
265 |
25±0.08 |
100 |
70 |
60+0.25 +0.1 |
|
MJAT107 |
92 |
55° |
20 |
41 |
450 |
45 |
315 |
25±0.08 |
100 |
74 |
60+0.25 +0.1 |
|
MJAT127 |
110 |
65° |
45 |
70 |
550 |
7 |
375 |
40±0.08 |
126 |
60 |
— |
|
MJAT157 |
110 |
70° |
45 |
70 |
700 |
2 |
450 |
40±0.08 |
126 |
50 |
— | |
|
|
